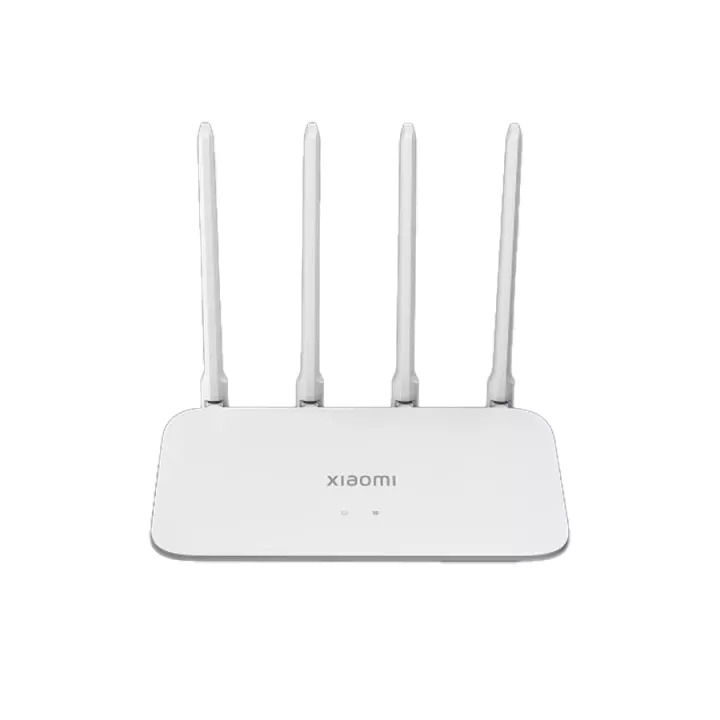

Xiaomi Router AC1200 EU

Specifications:

• Processor: Dual-core 880MHz
• ROM: 16MB
• Product Memory: 128MB DDR3
• 2.4Ghz Wi-Fi: 2x2 (Supports IEEE 802.11n protocol, up to a maximum speed of 300Mbps)
• 5GHZ Wi-FI: 2x2 (Supports IEEE 802.11ac protocol, up to a maximum speed of 867Mbps)
• Antennas: 4 external omni-directional high performance antennas
• Cooling: Passive cooling
• Product ports: 2x 10/100/1000M self adaptive LAN port (Auto MDI/MDIX)
• 1x 10/100/1000M self adaptive WAN port (Auto MDI/MDIX)
• LED Indicator: x2
• System reset button: x1
• Power supply port: x1
• Protocol standards: IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u/3ab

Wireless Specifications

• Dual Band: 2.4GHz and 5GHz
• Modulation:
• 11b:DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK(5.5/11Mbps) 11a/g:OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps),64QAM (48/54Mbps) 11n:MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0-MCS15 11ac:MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set:MCS0 to MCS9 (supports 2 streams)

Software Parameters

• Operating system: OpenWRT widely customisable intelligent router operating system MiWiFI ROM
• Wireless Security: WPA-PSK/WPA-PSK2 encryption, wireless access control (black and white lists). SSID hiding, smart anti-hacking protection.
• Manage applications: Support Web, Android, iOS

Accessories

• User Manual (includes warranty card): x1
• Power supply: (12V/1A) x1

Operating environment

• Operating environment temperature: 0°C–40°C
• Operating humidity: 10%–90% RH (non-condensing)
• Storage temperature: -40°C–70°C
• Storage temperature: 5%–90% RH (non-condensing)

Package contents

• Main unit
• User Manual
• Power Cable
